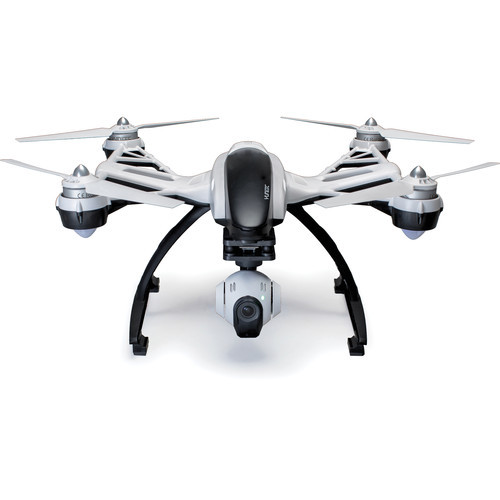

YUNEEC Q500+ Typhoon Quadcopter with CGO2-GB Camera, SteadyGrip, and Camera Aluminum Case (RTF)
Zoom the image with the mouse

YUNEEC Q500+ Typhoon Quadcopter with CGO2-GB Camera, SteadyGrip, and Camera Aluminum Case (RTF)

Write a Review
$699.99
UPC:
13646020598
MPN:
YUNQ5PSARTFUS
Brand
Availability:
In Stock

Related Products

Customers Also Viewed

Description

Typhoon Q500+ is a superior modular, integrated aerial and ground imaging solution. It features the ST-10+ 5.5" Android touch screen personal ground station and the CGO2+ 3-axis gimbal camera capable of taking 16 megapixel still photos and excellent Full HD 60 FPS videos. The included SteadyGrip extends the use of the gimbal camera from the sky to the ground.

With the CGO App, whatever is shot can be viewed on your SmartPhone with the same control of video FPS, video start/stop and still photos as found on the ST-10+. With the Q500+, it's never been easier to capture amazing photographs and video footage for a wide variety of uses.

Specifications

Performance
Flight Time Up to 25 minutes (depending on flying conditions)
Maximum Flying Height 400' / 121.9 m above ground level

Note: Adjustable via the Q500 GUI
Maximum Rotational Velocity 65°/s
Maximum Bank Angle 35°
Maximum Climb Rate Smart and Angle Mode: 9.8 fps / 3 m/s
Maximum Descent Rate Smart and Angle Mode: 6.6 fps / 2 m/s
Takeoff Weight With Battery and CGO2-GB Camera: 3.7 lb / 1.7 kg
Camera
Model CGO2-GB+
Focus Fixed
Resolution Video: 1080p at 60, 50 or 48 fps
Photo: 16 MP
White Balance Automatic
Audio Audio recording via integrated microphone (turn on/off with app)
File Formats Photo: JPEG
Recording Media microSDHC/XC Class 10: 4 to 128 GB
Power Requirements 7 to 14 VDC (powers from flight battery)
Temperature Storage Temperature: -4 to 140°F / -20 to 60°C
Operating Temperature: 32 to 122°F / 0 to 50°C
Weight 6.5 oz / 185 g
Gimbal
Control Angle Accuracy ±0.02°
Steady Grip
Dimensions 8.8 x 3 x 7.1" / 223 x 75 x 181 mm
Weight Without Camera / Gimbal: 13.9 oz / 395 g
Video Transmitter
Frequency 5.8 GHz
Range Up to 984.3' / 300 m line-of-sight
Transmit Power 500 mA (average) to 600 mA (peak) at 12 V (7.2 W maximum)
Flight Battery
Capacity 5400 mAh
Chemistry Lithium-polymer
Voltage 3S (11.1 V)
Charger
Model SC 3500-3 Balancing Smart Charger
Supported Chemistries Lithium-polymer
Charge Voltage 12.6 VDC; 3.5 A / 45 W maximum
Fuse 7.5 A
Power Requirements 10.5 to 15 VDC; 5 A (100 to 240 VAC adapter included)
Transmitter
Model ST10+ Personal Ground Station
Frequency Control Channels: 2.4 GHz
Video Receiver: 5.8 GHz
Channels 10
Flight Modes Smart
Angle
Home Modes
Operating System Android
Number of Channels 10
Range Control Signal: Up to 2624.7' / 400 m line-of-sight under optimal conditions
Display Size: 5.5"
Interface: Capacitive multi-touch
OSD Flight systems telemetry data can be viewed on-screen
Feedback Tactile (vibrating) and audible feedback
Power Requirements Built-in Battery:
3.6 V; 5200 mAh, 18.7, Wh
Charger 5 V USB charging (AC adapter included)
General
Dimensions Height: 9.4" / 240 mm
Width: 16.5" / 420 mm
Diagonal Length without Rotor Blades: 22.2" / 565 mm
Propeller/Main Rotor Diameter: 13" / 330 mm
Weight Without Battery and Payload: 2.5 lb / 1.1 kg
Packaging Info
Package Weight 24.5 lb
Box Dimensions (LxWxH) 19.0 x 19.0 x 13.0"
