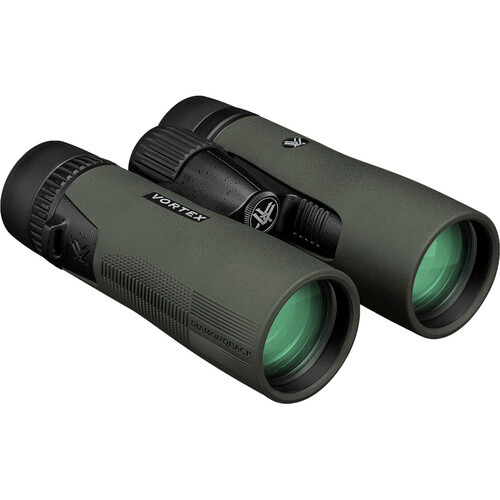

Vortex 8x42 Diamondback HD Binoculars
Zoom the image with the mouse

Vortex 8x42 Diamondback HD Binoculars

Write a Review
$219.99
UPC:
75874009936
MPN:
DB-214
Brand
Availability:
In Stock
Size Chart

Related Products

Customers Also Viewed

Description

Featuring a generous objective lens, a wide field of view, and a close focus distance of just 5', the 8x42 Diamondback HD Binocular from Vortex is a versatile optic suited to a wide range of uses. It comes with a Vortex GlassPak harness for comfortable use during hours of observation.

The Diamondback HD renders views with minimal chromatic aberration, exceptional color fidelity, edge-to-edge sharpness, and optimal light transmission through the use of ultra high definition glass, an index-matched lens configuration, XR Plus lens coatings, and dielectric-coated, phase-correcting roof prisms. The lenses are protected from scratches, oil, and dust by ArmorTek exterior lens coating.

The housing is argon filled and sealed with O-rings to ensure reliable and durable protection against dust, debris, fog, and water. It is rubber armored for non-slip and durable protection, and is equipped with a large focusing knob that is easy to use even while wearing gloves. Twist-down eyecups accommodate users who wear glasses. For hands-free use or the steadiest view, the Diamondback HD can be mounted on a tripod using the separately sold tripod adapter. Naturally contoured to perfectly fit your hands, promoting comfort and eliminating user fatigue,the Diamondback HD includes a winning combination of features.

Optical Performance

  • Roof prism design
  • 8x magnification
  • 42mm objective lenses
  • Fully multi-coated lenses increase transmission, clarity, and brightness
  • Dielectric-coated, phase-correcting roof prisms improve true color, contrast, and transmission
  • 7.5° angle of view
  • 393' linear field of view at 1000 yards
  • Birding-friendly 5' close focus distance
  • Exit pupil: 5.3mm
  • Eye Relief: 17mm

Use and Handling

  • Short-hinge bridge cuts weight and exposes more surface for handling
  • Adjustable interpupillary distance: 55-73mm
  • Oversized knurled center focusing wheel
  • Textured diopter ring on right eyepiece
  • Twist-up soft tapered rubber eyecups

Construction Details

  • GlassPak binocular harness with zippered accessory pocket
  • Protective rubber armor provides a slip-resistant grip
  • O-ring sealed and argon filled to be waterproof and resistant to internal fogging when moving through extreme temperature and environmental conditions
  • Scratch-resistant ArmorTek exterior lens coatings repel oils and corrosive materials from lenses



Vortex Diamondback HD Specs

Prism Type Roof
Performance
Magnification 8x
Objective Lens Diameter 42 mm
Angle of View 7.5° (Actual)
Field of View 393' @ 1000 yd / 130.48 m @ 1000 m
Minimum Focus Distance 5' / 1.52 m
Exit Pupil Diameter 5.3 mm
Eye Relief 17 mm
Interpupillary Adjustment 55 to 73 mm / 2.2 to 2.9"
Diopter Adjustment Yes
Focus Type Center
Features
Fogproof Yes, Argon Filled
Water Resistance Waterproof
General
Dimensions 5.7 x 5.1" / 14.48 x 12.95 cm
Weight 21.8 oz / 618 g
Packaging Info
Package Weight 2.455 lb
Box Dimensions (LxWxH) 8.7 x 7 x 7"
