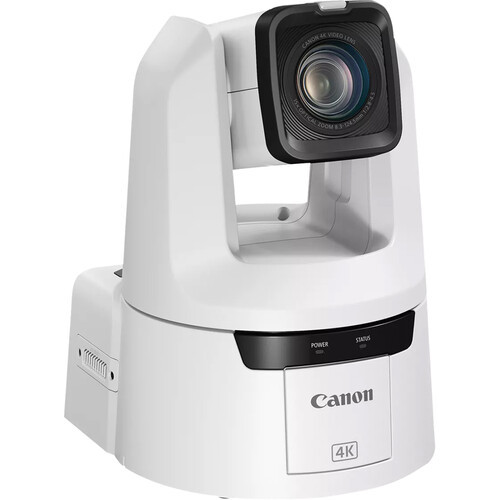

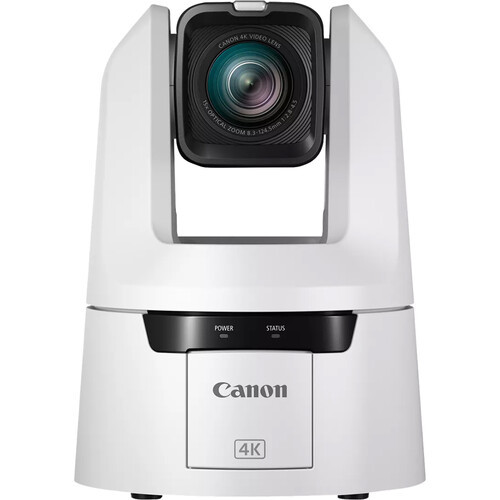

Canon CR-N500 4K NDI PTZ White

Features: High Quality 4K 30P and Full HD 60P Video Output

1.0 Type CMOS Sensor

The CR-N500 features a Canon 1.0-inch 4K UHD CMOS image sensor capable of 4K UHD video capture at 30p and up to 60fps in Full HD, making the CR-N500 PTZ camera great for the remote and unobtrusive capture of professional productions.

DIGIC DV 6 Image Processor

The CR-N500 PTZ camera incorporates Canon's DIGIC DV 6 Image Processor, which is essential in providing high image quality, advanced performance and convenient operability. This advanced core technology component provides the image-processing power and speed that enables features such as 4K UHD video acquisition and precise Dual Pixel CMOS AF.

Dual Pixel CMOS AF

Dual Pixel CMOS AF is Canon’s breakthrough AF technology that uses a CMOS sensor with a structure that combines imaging and phase-difference AF functions. The Dual Pixel CMOS AF determines the focusing position by the phase difference, which drives the focusing lens smoothly and enables quick focusing. The AF tracking capability is effective even during zooming, panning or tilting. On the other hand, with conventional contrast AF method, used by other cameras, the focusing position is determined by the contrast (difference of brightness). Therefore, the focusing lens may move slightly back and forth around the focusing position, which could cause delay when focusing.

The CR-N500’s 1.0-inch sensor allows for larger photosites compared to smaller-sized sensors found in other PTZ cameras, resulting in stunning images with less noise in low-light situations. The larger sensor also exhibits a shallow depth of field at large apertures, producing a beautiful bokeh and blurred backgrounds in images, while Canon’s DAF tracks and keeps subjects in sharp focus. The CR-N500’s DIGIC DV 6 imaging engine drives the high sensitivity and low noise performance of the camera yielding amazing imagery in a variety of shooting conditions.

Minimum subject illumination at 1.5 lux*.

*When camera set to: (3840 × 2160 : shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB).

Dual Pixel Focus Guide

Utilizing information from Dual Pixel CMOS AF, Dual Pixel Focus Guide helps achieve precise focus by displaying focus assist information on the screen. It employs a truly an innovative user interface that helps enable the user to see if they are focused in front of or behind the subject through visual observation, and allows quick and accurate manual focus to be achieved. This helps simplify the focusing process when shooting in 4K UHD, which requires strict focus accuracy.

Face Detection & Tracking

The CR-N500 has multiple focus modes that aid the operator when confirming focus. When set to on, the Face Detection & Tracking can track the face of a subject when they are within a frame. Furthermore, there are two Face Detection options (Face Priority & Face Only). Face Priority will track a face within the scene, when a face is no longer within the scene, the camera will continue to focus within the predefined focus area. In the same way, the Face Only function will track the detected face within the scene, if the face is no longer within the scene, the camera will maintain its focus position without tracking for new objects. If more than one face is detected within a scene, the operator can toggle between detected faces. Both modes are useful when following a subject allowing the operator to focus on composition while the camera handles focus.

Canon 4K UHD Lens

The CR-N500 features a 15x optical zoom lens and exhibits a wide viewing angle of 73 degrees (horizontal). At the wide end, the 25.5 mm* lens is capable of capturing extensive scenes in tight shooting spaces such as indoor events for cinematic wide shots. The camera utilizes aspheric lens elements to achieve 4K image quality while minimizing various aberrations over the entire zoom range.

Easily change the look of the image capture by utilizing a neutral-density filter. The CR-N500 is equipped with a built-in ND filter mechanism that allows the user to select from three densities: 1/4, 1/16 and 1/64. With the built-in ND filter, users can achieve rich video expression by controlling aperture values.

Furthermore, the lens structure of the CR-N500 enables real-time responsiveness in a three-dimensional space, supporting optical image stabilization, which helps keep the image capture stable by minimizing vibration.

*35 mm camera equivalent

Over Sampling HD Processing

The full HD recording (over sampling HD processing) takes full advantage of the image information acquired by Canon’s 4K sensor to generate beautiful high-definition full HD video. This helps content creators produce stunningly detailed FHD video when utilizing the CR-N500.

Smooth & Responsive Pan and Tilt Performance

The CR-N500 is equipped with the PT (Pan, Tilt) drive mechanism that can change the speed from fast to slow in incremental steps. This allows the operator to set the speeds to desired preference to allow for smooth PT movement. The CR-N500 exhibits a variable Pan and Tilt speed of .1° - 100°/second.
