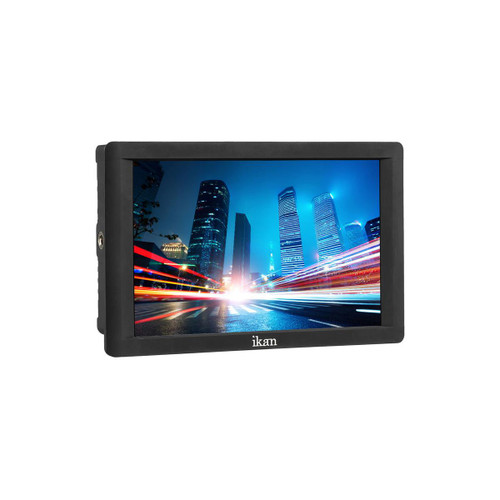

ikan DH7 7" Full HD HDMI Monitor with 4K Signal Support
Zoom the image with the mouse

ikan DH7 7" Full HD HDMI Monitor with 4K Signal Support

Write a Review
$399.99
UPC:
47983015436
MPN:
dh7
Brand

Out of Stock: Call for Availability

Related Products

Customers Also Viewed

Description

View UHD-resolution HDMI signals with the Ikan DH7 Monitor. Featuring a 1920x1200 WUXGA IPS panel for accurate color and wide viewing angles, the 4K-compatible HDMI connections can accept and loop-output 4K HDMI signals without requiring extra downscaling hardware. Because the DH7 can work with 4K signals, which have greater representation of fine details and edges, focus assist functions, such as focus peaking and punch-in through 1:1 pixel mapping, are enhanced. The thin profile of the monitor as well as 1/4"-20 threads on all sides, make it easy to integrate into your DSLR or mirrorless camera setup. A convenient headphone output allows for audio monitoring straight from the camera's HDMI signal. The monitor includes two swappable battery plates: one for Canon LP-E6-type batteries and one for Sony L-type batteries.

Monitoring Functions
  • Histogram
  • Audio level meters
  • Monochrome Peaking
  • False color
  • Clip guides
  • Movable 1:1 pixel mapping
  • DSLR scaling
  • Underscan
  • ikan-dh7-7-full-hd-hdmi-monitor-with-4k-signal-support

Specifications

Screen Size 7" (17.8 cm)
Resolution 1920 x 1080
Aspect Ratio 16:9
Backlight LED
Response Time 20 ms
Brightness 300 nit
Material Heavy-duty plastic
Viewing Angle 178° horizontal / 178° vertical
Color Depth 16.7 million
Color System PAL/NTSC/SECAM (Auto-Detected)
Contrast Ratio 800:1
Pixel Pitch 0. 01925 x 0.05775 (mm)
Input Voltage 7 to 24 VDC
Inputs HDMI
720 x 480i & 720 x 480p @ 59.94, 60 Hz
720 x 576i @ 50 Hz
1280 x 720p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1920 x 1080psf @ 24, 25, 29.97, 30 Hz
1920 x 1080p @ 23.97, 24, 25, 29.94, 30, 50.94, 60 Hz
3840 x 2160p @ 24, 25, 30 Hz
Power Consumption 6 W
Operating Temperature 32 to 122°F (0 to 50°C)
Dimensions 7.2 x 4.5 x 0.6" (18.2 x 11.4 x 1.5 cm)
Weight 0.5 lb (0.26 kg)
Packaging Info
Package Weight 2.2 lb
Box Dimensions (LxWxH) 14.6 x 7.9 x 2.9"
